LOGIC-Electrical Circuit?

image from: derspresso

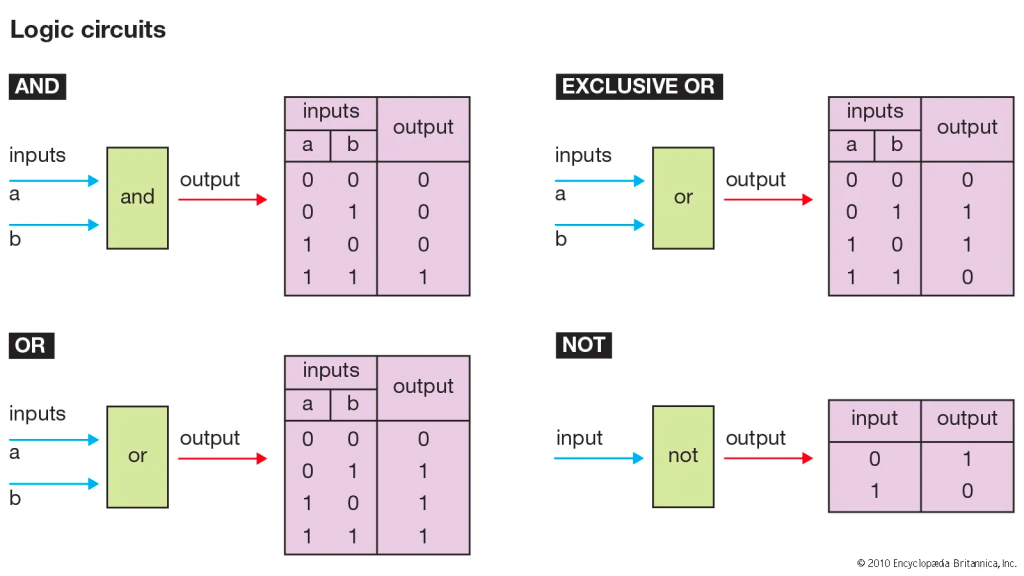

image from: britannica

Logic Gates and Operations:

• Just as an electric circuit consists of various components like resistors, capacitors, and transistors, logical operations in mathematics are represented by logic gates such as AND, OR, NOT, XOR, etc.
• Each logic gate performs a specific operation on its inputs and produces an output based on predefined rules.

LOGIC can also look like an electric circuit and even used in it!
